Specification of thread:Metric, G and PG.
Product material: brass material
Specification of product:

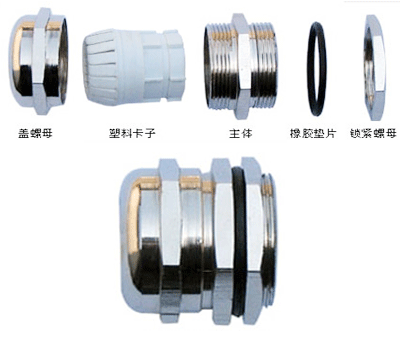

1.The bolt of Metal Calbe Connector is made of brass material, beautiful outlook and high quality.
2.Compact structure, water resistant, anti-oil, anticorrosive.
3.DDJ-B Metal Cable Connectors are the fittings for cables.The joints can lock the cables tight and protectively.
Besides the following specifications, the size and thread standard can be varied at your discretion as per requirements.
|
Specification |
Screw Thread |
Cable Diameter
|
|
Metric System |
British Standard Pipe Thread(BSP) |
Germany Standard |
| DDJ |
M12*1.5 |
|
PG7 |
3-6 |
| DDJ |
M16*1.5 |
G3/8 |
PG9 |
4-8 |
| DDJ |
M18*1.5 |
|
PG11 |
5-10 |
| DDJ |
M20*1.5 |
G1/2 |
PG13.5 |
6-12 |
| DDJ |
M24*1.5 |
|
PG16 |
10-14 |
| DDJ |
M25*1.5 |
|
|
10-16 |
| DDJ |
M27*2 |
G3/4 |
PG21 |
13-18 |
| DDJ |
M30*2 |
|
|
13-18 |
| DDJ |
M32*1.5 |
G1 |
|
18-22 |
| DDJ |
M32*1.5 |
G1 |
|
18-25 |
| DDJ |
M36*1.5 |
|
PG29 |
18-25 |
| DDJ |
M40*1.5 |
G1-1/4 |
|
22-30 |
| DDJ |
M47*1.5 |
G1/1/2 |
PG36 |
28-33 |
| DDJ |
M50*1.5 |
|
PG42 |
32-38 |
| DDJ |
M60*1.5 |
G2 |
PG48 |
37-44 |
| DDJ |
M63*1.5 |
|
|
37-44 |
Model: DDJ-B
Productivity: 500,000pcs/year
Origin: Zhejiang,China
Packing: Cartons or Plastic bags
Min. Order: 1,000pcs
|
